ATOMS AND MOLECULES

1. Atoms

Most of the Universe consists of matter and energy. Energy is the capacity to do work. Matter has mass and occupies space. All matter is composed of basic elements that cannot be broken down to substances with different chemical or physical properties. Elements are substances consisting of one type of atom, for example Carbon atoms make up diamond, and also graphite. Pure (24K) gold is composed of only one type of atom, gold atoms. Atoms are the smallest particle into which an element can be divided. The ancient Greek philosophers developed the concept of the atom, although they considered it the fundamental particle that could not be broken down. Since the work of Enrico Fermi and his colleagues, we now know that the atom is divisible, often releasing tremendous energies as in nuclear explosions or (in a controlled fashion in) thermonuclear power plants.

Subatomic particles were discovered during the 1800s. For our purposes we will concentrate only on three of them, summarized in Table 1. The proton is located in the center (or nucleus) of an atom, each atom has at least one proton. Protons have a charge of +1, and a mass of approximately 1 atomic mass unit (amu). Elements differ from each other in the number of protons they have, e.g. Hydrogen has 1 proton; Helium has 2.

The neutron also is located in the atomic nucleus (except in Hydrogen). The neutron has no charge, and a mass of slightly over 1 amu. Some scientists propose the neutron is made up of a proton and electron-like particle.

The electron is a very small particle located outside the nucleus. Because they move at speeds near the speed of light the precise location of electrons is hard to pin down. Electrons occupy orbitals, or areas where they have a high statistical probability of occurring. The charge on an electron is -1. Its mass is negligible (approximately 1800 electrons are needed to equal the mass of one proton).

Table 1. Subatomic particles of use in biology.

Name	Charge	Location	Mass
Proton	+1	atomic nucleus	1.6726 X 10-27 kg
Neutron	0	atomic nucleus	1.6750 X 10-27 kg
Electron	-1	electron orbital	9.1095 X 10-31 kg

The atomic number is the number of protons an atom has. It is characteristic and unique for each element. The atomic mass(also referred to as the atomic weight) is the number of protons and neutrons in an atom. Atoms of an element that have differing numbers of neutrons (but a constant atomic number) are termed isotopes. Isotopes, shown in Figure 1 and Figure 2, can be used to determine the diet of ancient peoples by determining proportions of isotopes in mummified or fossilized human tissues. Biochemical pathways can be deciphered by using isotopic tracers. The age of fossils and artifacts can be determined by using radioactive isotopes, either directly on the fossil (if it is young enough) or on the rocks that surround the fossil (for older fossils like dinosaurs). Isotopes are also the source of radiation used in medical diagnostic and treatment procedures.

Figure 1. Note that each of these isotopes of hydrogen has only one proton. Isotopes differ from each other in the number of neutrons, not in the number of protons.

Some isotopes are radioisotopes, which spontaneously decay, releasing radioactivity. Other isotopes are stable. Examples of radioisotopes are Carbon-14 (symbol ¹⁴C), and deuterium (also known as Hydrogen-2; ²H). Stable isotopes are ¹²C and ¹H.

Figure 2. Carbon has three isotopes, of which carbon-12 and carbon-14 are the most well known.

The Periodic Table of the Elements, a version of which is shown in Figure 3, provides a great deal of information about various elements. An on-line Periodic Table is available by clicking here,

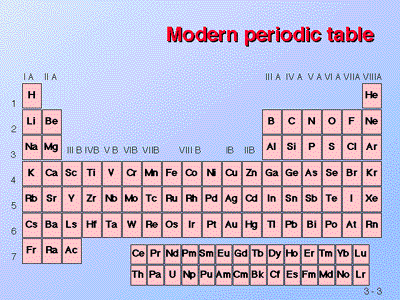

Figure 3. The Periodic Table of the Elements. Each Roman numeraled column on the label (at least the ones ending in A) tells us how many electrons are in the outer shell of the atom. Each numbered row on the table tells us how many electron shells an atom has. Thus, Hydrogen, in column IA, row 1 has one electron in one shell. Phosphorous in column VA, row 3 has 5 electrons in its outer shell, and has three shells in total.

2. Electrons and energy

Electrons, because they move so fast (approximately at the speed of light), seem to straddle the fence separating energy from matter. Albert Einstein developed his famous E=mc² equation relating matter and energy over a century ago. Because of his (and others) work, we think of electrons both as particles of matter (having mass is a property of matter) and as units (or quanta) of energy. When subjected to energy, electrons will acquire some of that energy, as shown in Figure 4.

Figure 4. Excitation of an electron by energy, causing the electron to "jump" to another electron (energy) level known as the excited state.

An orbital is also an area of space in which an electron will be found 90% of the time. Orbitals have a variety of shapes. Each orbital has a characteristic energy state and a characteristic shape. The s orbital is spherical. Since each orbital can hold a maximum of two electrons, atomic numbers above 2 must fill the other orbitals. The p_x, p_y, and p_z orbitals are dumbbell shaped, along the x, y, and z axes respectively. These orbital shapes are shown in Figure 5.

Energy levels (also referred to as electron shells) are located a certain "distance" from the nucleus. The major energy levels into which electrons fit, are (from the nucleus outward) K, L, M, and N. Sometimes these are numbered, with electron configurations being: 1s²2s²2p¹, (where the first shell K is indicated with the number 1, the second shell L with the number 2, etc.). This nomenclature tells us that for the atom mentioned in this paragraph, the first energy level (shell) has two electrons in its s orbital (the only orbital it can have), and second energy level has a maximum of two electrons in its sorbital, plus one electron in its p orbital.

 Figure 5. Geometry of orbitals. S-orbitals are spherical, p-orbitals are shaped like a dumbbell or figure 8.

3. Chemical Bonding

During the nineteenth century, chemists arranged the then-known elements according to chemical bonding, recognizing that one group (the furthermost right column on the Periodic Table, referred to as the Inert Gases or Noble Gases) tended to occur in elemental form (in other words, not in a molecule with other elements). It was later determined that this group had outer electron shells containing two (as in the case of Helium) or eight (Neon, Xenon, Radon, Krypton, etc.) electrons.

As a general rule, for the atoms we are likely to encounter in biological systems, atoms tend to gain or lose their outer electrons to achieve a Noble Gas outer electron shell configuration of two or eight electrons. The number of electrons that are gained or lost is characteristic for each element, and ultimately determines the number and types of chemical bonds atoms of that element can form. Atomic diagrams for several atoms are shown in Figure 6.

Figure 6. Atomic diagrams illustrating the filling of the outer electron shells.

Ionic bonds are formed when atoms become ions by gaining or losing electrons. Chlorine is in a group of elements having seven electrons in their outer shells (see Figure 6). Members of this group tend to gain one electron, acquiring a charge of -1. Sodium is in another group with elements having one electron in their outer shells. Members of this group tend to lose that outer electron, acquiring a charge of +1. Oppositely charged ions are attracted to each other, thus Cl^- (the symbolic representation of the chloride ion) and Na⁺ (the symbol for the sodium ion, using the Greek word natrium) form an ionic bond, becoming the molecule sodium chloride, shown in Figure 7. Ionic bonds generally form between elements in Group I (having one electron in their outer shell) and Group VIIa (having seven electrons in their outer shell). Such bonds are relatively weak, and tend to disassociate in water, producing solutions that have both Na and Cl ions.

Figure 7. TOP: Formation of a crystal of sodium chloride. Each positively charged sodium ion is surropunded by six negatively charged chloride ions; likewise each negatively charged chloride ion is surrounded by six positively charged sodium ions. The overall effect is electrical neutrality.

Covalent bonds form when atoms share electrons. Since electrons move very fast they can be shared, effectively filling or emptying the outer shells of the atoms involved in the bond. Such bonds are referred to as electron-sharing bonds. An analogy can be made to child custody: the children are like electrons, and tend to spend some time with one parent and the rest of their time with the other parent. In a covalent bond, the electron clouds surrounding the atomic nuclei overlap, as shown in Figure 8.

Figure 8. Formation of a covalent bond between two Hydrogen atoims.

Carbon (C) is in Group IVa, meaning it has four electrons in its outer shell. Thus to become a "happy atom", Carbon can either gain or lose four electrons. By sharing the electrons with other atoms, Carbon can become a happy atom,. alternately filling and emptying its outer shell, as with the four hydrogens shown in Figure 9.

Figure 9. Formation of covalent bonds in methane. Carbon needs to share four electrons, in effect it has four slots. Each hydrogen provides an electron to each of these slots. At the same time each hydrogen needs to fill one slot, which is done by sharing an electron with the carbon.

The molecule methane (chemical formula CH₄) has four covalent bonds, one between Carbon and each of the four Hydrogens. Carbon contributes an electron, and Hydrogen contributes an electron. The sharing of a single electron pair is termed a single bond. When two pairs of electrons are shared, a double bond results, as in carbon dioxide. Triple bonds are known, wherein three pairs (six electrons total) are shared as in acetylene gas or nitrogen gas. The types of covalent bonds are shown in Figure 10.

Figure 10. Ways of representing covalent bonds.

Sometimes electrons tend to spend more time with one atom in the bond than with the other. In such cases a polar covalent bond develops. Water (H₂O) is an example. Since the electrons spend so much time with the oxygen (oxygen having a greater electronegativity, or electron affinity) that end of the molecule acquires a slightly negative charge. Conversely, the loss of the electrons from the hydrogen end leaves a slightly positive charge. The water molecule is thus polar, having positive and negative sides.

Hydrogen bonds, as shown in Figure 11, result from the weak electrical attraction between the positive end of one molecule and the negative end of another. Individually these bonds are very weak, although taken in a large enough quantity, the result is strong enough to hold molecules together or in a three-dimensional shape.

Figure 11. TOP: Formation of a hydrogen bond between the hydrogen side of one water molecule and the oxygen side of another water molecule. BOTTOM: The presence of polar areas in the amino acids that makeup a protein allows for hydrogen bonds to form, giving the molecule a three-dimensional shape that is often vital to that protein's proper functioning.

4. Chemical reactions and molecules

Molecules are compounds in which the elements are in definite, fixed ratios, as seen in Figure 12. Those atoms are held together usually by one of the three types of chemical bonds discussed above. For example: water, glucose, ATP. Mixtures are compounds with variable formulas/ratios of their components. For example: soil. Molecular formulas are an expression in the simplest whole-number terms of the composition of a substance. For example, the sugar glucose has 6 Carbons, 12 hydrogens, and 6 oxygens per repeating structural unit. The formula is written C₆H₁₂O₆.

Figure 12. Determination of molecular weights by addition of the weights of the atoms that make up the molecule.

Chemical reactions occur in nature, and some also can be performed in a laboratory setting. One such reaction is diagrammed in Figure 13. Chemical equations are linear representations of how these reactions occur. Combination reactions occur when two separate reactants are bonded together, e.g. A + B -----> AB. Disassociation reactions occur when a compound is broken into two products, e.g. AB -----> A + B.

Figure 13. Diagram of a chemical reaction: the combustion of propane with oxygen, resulting in carbon dioxide, water, and energy (as heat and light). This chemical reaction takes place in a camping stove as well as in certain welding torches.

Biological systems, while unique to each species, are based on the chemical bonding properties of carbon. Major organic chemicals (those associated with or formed by the actions of living things) usually include some ratios of the following elements: C, H, N, O, P, S.

5 Learning Objectives

• All forms of matter are composed of one or more elements. Be able to list the major elements in living things.
• Describe how protons, electrons, and neutrons are arranged into atoms and ions.
• Define the terms atomic number and atomic mass and be able to describe their sugnificance.
• Atoms with the same atomic number but a different mass number are isotopes. List the isotopes of hydrogen and of carbon.
• Be able to describe radioisotopes and list three ways they are used in biology.
• The union between the electron structures of atoms is known as the chemical bond. Be able to list and describe the three types of chemical bonds found in living things.
• Be able to describe the distribution of electrons in the space around the nucleus of an atom.
• An atom tends to react with other atoms when its outermost shell is only partly filled with electrons. Be able to discuss why this happens.
• Be able to define the two types of ions and describe thow ionic bonds form between positive and negative ions.
• In a covalent bond, atoms share electrons. List several elements that tend to form covalent bonds.
• Distinguish between a nonpolar covalent bond and a polar covalent bond and give an example of each.
• Define hydrogen bond and describe conditions under which hydrogen bonds form and cite one example.
• Explain what is meant by the polarity of the water molecule, and how the polarity of water molecules allows them to interact with one another.

Questions

1.   Which of these is not a subatomic particle? a) proton; b) ion; c) neutron; d) electron

2.   The outermost electron shell of every Noble Gas element (except Helium) has ___ electrons. a) 1; b) 2; c) 4; d) 6; e) 8

3.   An organic molecule is likely to contain all of these elements except ___. a) C; b) H; c) O; d) Ne; e) N

4.   The chemical bond between water molecules is a ___ bond. a) ionic; b) polar covalent; c) nonpolar covalent; d) hydrogen

5.   A solution with a pH of 7 has ___ times more H ions than a solutrion of pH 9. a) 2; b) 100; c) 1000; d) 9; e) 90

6.   The type of chemical bond formed when electrons are shared between atoms is a ___ bond. a) ionic; b) covalent; c) hydrogen

7.   The type of chemical bond formed when oppositely charged particles are attrached to each other is a ___ bond. a) ionic; b) covalent; c) hydrogen

8.   Electrons occupy volumes of space known as ___. a) nuclei; b) periods; c) wavelengths; d) orbitals

9.   Carbon has an atomic number of 6. This means it has ___. a) six protons; b) six neutrons; c) six protons plus six neutrons; d) six neuitrons and six electrons

10.                Each of the isotopes of hydrogen has ___ proton(s). a) 3; b) 1; c) 2; d) 92; e) 1/2

11.                A molecule is ___. a) a mixture of various components that can vary; b) a combination of many atoms that will have different ratios; c) a combination of one or more atoms that will have a fixed ratio of its components; d) more important in a chemistry class than in a biology class
